The most powerful, integrated, open and cost-effective wireless system
Add multiple parameters to your machine condition monitoring for very low-cost integral machine health analysis. And the above all! with less effort.

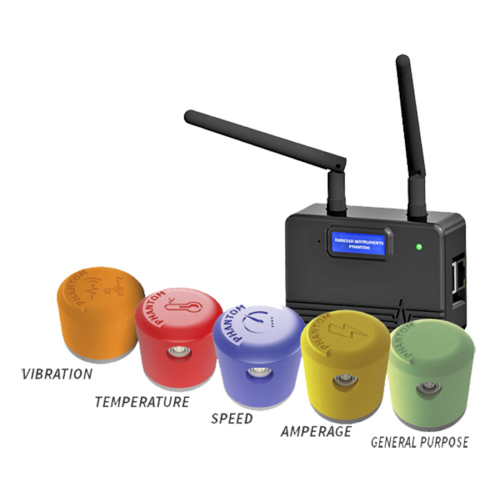

Phantom can look at the machine´s vibration several times per hour and even wake on high level of vibration to send FFT information to your cloud-based or local database. It also adds Temperature, Amperage and RPM to your maintenance system. Our Digivibe software automatically tracks predefined faults for bearings analysis and gear frequency detection using its unique RPM tracker.
3 Axis
Phantom integrates a 10 kHz bandwidth triaxial accelerometer as well as internal temperature for a complete bearing analysis.
Wireless Technology
Phantom uses 5.0 BLE mesh network to integrate an ultra-low power wireless technology into a reliable industrial environment.
Easy to install
Just place and go… Phantom requires no cables, it automatically connects to the closest gateway up to 200m line of sight, furthermore Phantom will adjust the signal strength according to the gateway´s distance to save battery.
kit Includes:
Wake on high vibration
Phantom can store alarms to wake up within 0.5 seconds to immediately send unexpected high vibration values and FFT to deploy alarms so actions can be taken accordingly.
Machine Criticality Ranking
Each Phantom sensor can be remotely configured to send information at different intervals according to the type of machine in order to find the perfect balance between battery life and security.
Developers
Use Phantom on your own system, our APIs can be provided to use them on many languages so you can get started integrating our products into your system right away. Phantom´s API Architecture combines tools for managing an infinite amount of gateways and sensors with their configurations for alarms and recording intervals.
Additionally manage your database information with our API database manager to achieve your goals even faster.
Cloud or Local Network Capability with Open SQL Database

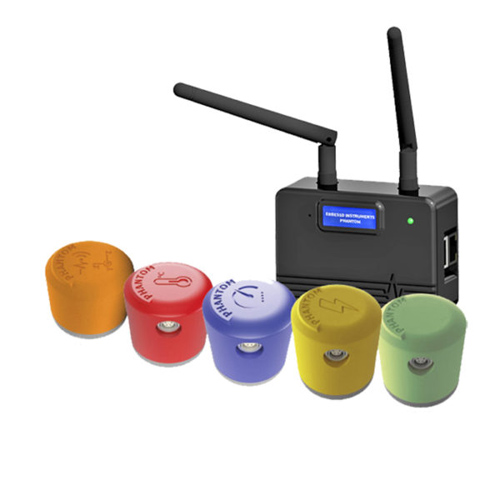

Gateway
Wifi , 4G & Ethernet capable, LCD status screen
Storage
The Freedom to Choose:
Store data locally
Store data on the Cloud
Open SQL database

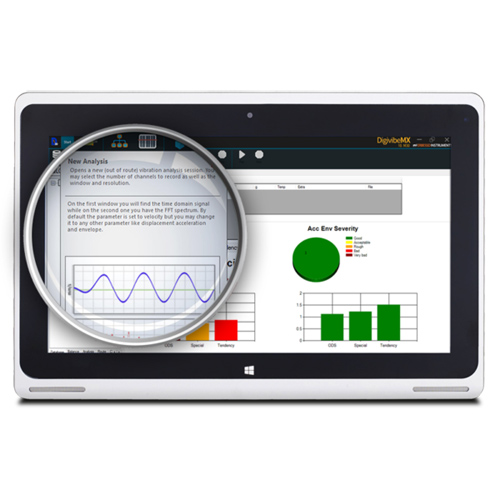

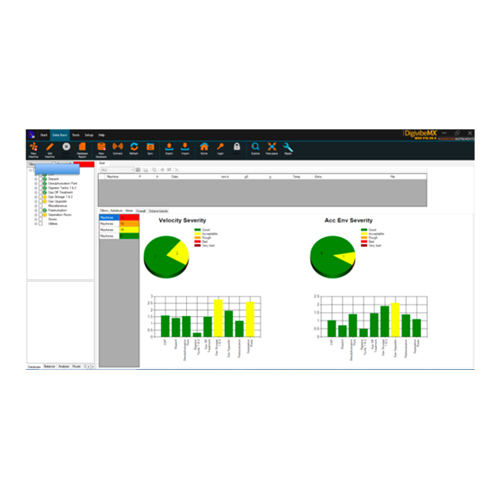

ITS YOUR DATA: All data can be accessed through any database API for SQL or MySQL. Experience the power of DigivibeMX software with
Autodiagnostic tools
Trending & Octave Bands
3D views and Simulations
Automatic reports
3D Waterfall
Phase Analysis
Envelope Alarms
30,000+ bearings database
And MUCH MORE…
Active & Octave Bands
Vibration Trending is a useful function to track the condition of your machines. Octave bands trending is by far more powerful because it tracks every frequency by dividing the full spectrum into 32 bands and tracks the RMS value of each one of bands independently helping to identify a change in frequency easily.
Autodiagnostic tools
